Philips EP5543/90: An Automatic Machine for Hot and Iced Coffee
The Philips EP5543/90 is part of the Series 5500 LatteGo range. It is designed for people who want espresso, regular coffee and milk-based drinks without grinding beans, dosing coffee or frothing milk manually.
The machine offers 20 hot and iced recipes. Its LatteGo system prepares milk foam without internal tubes, while QuickStart lets you select a drink immediately after switching the machine on. The appliance then heats according to the selected recipe. Philips Series 5500 product information
Market-specific versions of the Series 5500 may differ in colour, included accessories and available recipes. The EP5543/90 is primarily identified by its white and chrome finish.
Key Specifications
Machine type: | fully automatic bean-to-cup machine |
Drink selection: | 20 hot and iced recipes |
Milk system: | removable tube-free LatteGo |
Grinder: | ceramic burr grinder |
Grinder settings: | 12 |
Pump pressure: | 15 bar |
Water tank: | 1.8 litres |
Bean hopper: | approximately 275 g |
Coffee options: | whole beans and pre-ground coffee |
Interface: | colour touch display |
Personalisation: | coffee strength, coffee and milk volume |
Water filter: | AquaClean compatible |
Power: | 1,500 W |
Dimensions: | approximately 24.6 × 37.1 × 43.3 cm |
Weight: | approximately 8 kg |
EP5543/90 colour: | white with chrome details |
The Extra Shot option can add more coffee intensity without simply increasing the volume of water. User profiles are useful in households where several people prefer different drink settings.
Available Drinks
The menu combines espresso-based drinks, milk recipes, hot water and iced options. Depending on the regional configuration, these may include:
- espresso and ristretto;
- regular coffee and caffè crema;
- Americano;
- cappuccino;
- latte macchiato;
- caffè latte;
- café au lait;
- hot milk and milk foam;
- hot water;
- iced coffee;
- iced Americano;
- iced milk-based recipes.
The machine does not chill water or produce ice. For an iced recipe, ice must be placed in the glass separately. The brewing parameters are adjusted so that the coffee retains more flavour when served over ice.
LatteGo uses a simple two-part container rather than a network of internal milk tubes. This makes it easier to rinse after use. It can also froth some plant-based alternatives, although the result depends on the product’s protein and fat content.
How to Use the Philips EP5543/90
Initial setup
Place the machine on a stable counter with enough clearance around it. The body is relatively narrow, but it is more than 43 cm deep, so check the available worktop space before buying.
Wash the water tank, drip tray and LatteGo parts. Fill the tank with fresh cold water and add coffee beans to the hopper.
Set the water hardness
Test the water using the supplied strip and enter the result in the settings. This helps the machine calculate when descaling is necessary.
If you use an AquaClean filter, prepare and activate it through the machine’s menu. A filter reduces mineral buildup but does not eliminate the need for cleaning and maintenance.
Brew several initial cups
The first few drinks may taste weak or watery. The internal system needs several brewing cycles to fill its channels and adjust coffee dosing. Avoid changing every setting after the first cup.
Select and customise a drink
Choose a recipe on the display and adjust the available parameters:
- aroma strength;
- coffee volume;
- milk volume;
- Extra Shot;
- user profile.
For a milk drink, fill and attach the LatteGo container, then position the cup beneath both the coffee and milk outlets.
What Coffee Works Best?
Medium-roast beans are the safest starting point. They normally provide enough body for milk drinks without producing excessive bitterness in espresso.
For espresso and Americano
Good options include:
- medium or medium-dark Arabica;
- Arabica and Robusta blends;
- beans with chocolate, nut or caramel notes.
Robusta adds body, bitterness and caffeine. A high-Arabica blend will usually produce a softer, more aromatic cup.
For cappuccino and latte
Milk softens acidity and hides some of the coffee’s aroma. A medium or medium-dark roast therefore tends to remain more noticeable in a large milk drink.
Light-roasted beans can taste thin or distinctly acidic in a latte, although they may work well for people who enjoy fruity black coffee.
Beans to avoid
Avoid regularly using:
- heavily oily dark-roasted beans;
- flavoured beans;
- caramelised or sugar-coated beans;
- green or under-roasted coffee.
Oils and flavourings can create sticky deposits inside the hopper and grinder. Coated beans may damage the burrs.
The bypass compartment accepts one measured dose of pre-ground coffee. It is useful when preparing an occasional decaffeinated drink. Do not fill it with instant coffee or add more than one dose at a time.
Adjusting the Grinder and Strength
The factory grinder setting is a sensible place to start. If the drink is too weak, first increase the aroma strength or reduce the water volume.
Use these general guidelines:
- fast flow and weak coffee — select a slightly finer grind;
- very slow or dripping flow — use a coarser grind;
- milk overwhelms the coffee — increase strength or add an Extra Shot.
Turn the grinder adjustment dial only while the grinder is operating. Change it by one step at a time and prepare several drinks before evaluating the result.

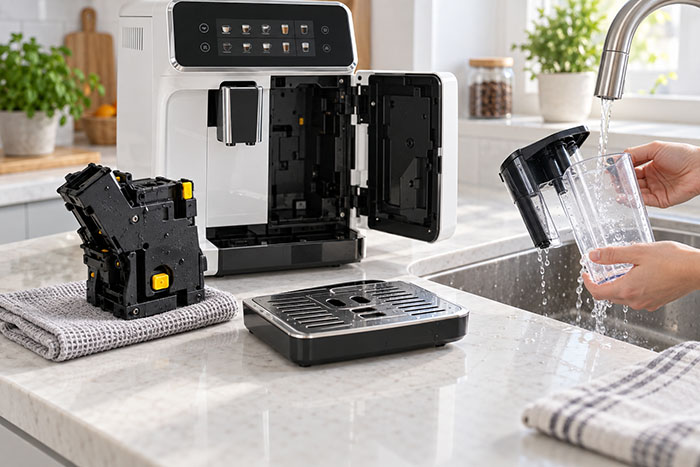

Cleaning and Maintenance
After milk drinks
Remove the LatteGo container, separate its parts and rinse them with water. Leftover milk may be refrigerated briefly in the covered container, but always check its freshness before using it again.
Every day
- empty the drip tray when indicated;
- rinse the grounds container;
- wipe the drink outlets;
- replace water that has been standing in the tank for a long time.
Water in the drip tray does not necessarily indicate a leak. The machine automatically rinses its internal circuits, and this water is directed into the tray.
Every week
Remove the LatteGo container, separate its parts and rinse them with water. Leftover milk may be refrigerated briefly in the covered container, but always check its freshness before using it again.
Periodically
- clean the coffee circuit with an approved oil-removal tablet;
- lubricate the brew group as instructed;
- replace the AquaClean filter when prompted;
- run the complete descaling program when requested.
Do not interrupt descaling or unplug the appliance during the procedure.
Common Problems
Weak or watery coffee | Coffee is not hot enough | Poor milk foam |
This can occur during the initial adjustment period or because the grind is too coarse, the aroma setting is too low, or the selected volume is too large. Increase the strength before making major grinder changes. | Preheat the cup with hot water and select a higher temperature setting. A large cold cup and refrigerated milk can significantly reduce the final temperature. | Check that LatteGo is correctly assembled and clean. Use cold milk with sufficient protein. For plant-based milk, products labelled “barista” generally produce more stable foam. |
Water collects in the drip tray | The brew group cannot be removed | The grinder is noisy |
A moderate amount is normal because the machine performs automatic rinsing. Water appearing directly beneath the appliance may indicate an incorrectly fitted tank, tray or seal. | Do not force it. Reinsert the grounds container and drip tray, close the service door, then switch the machine on and off using its power button. Once the mechanism returns to its neutral position, try again. | Grinding coffee is naturally audible. Unusual cracking sounds may indicate a foreign object or exceptionally hard beans. SilentBrew reduces operating noise but does not make the grinder silent. |
Pros and Cons
|
|
Who Is It For?
The Philips EP5543/90 is suitable for households where people enjoy different types of coffee and want convenient one-touch preparation. It is especially appealing to cappuccino and latte drinkers who dislike cleaning milk tubes.
It is less suitable for coffee enthusiasts who want direct control over pressure, extraction time and milk texture. A semi-automatic espresso machine and separate grinder provide more control.
It is a good match for:
- households with two to four coffee drinkers;
- users who alternate between black and milk drinks;
- people who want saved personal settings;
- fans of iced coffee;
- anyone who does not want to froth milk manually;
- users who value a removable brew group.
Verdict
The Philips EP5543/90 is a versatile home coffee machine with a broad drink menu and an unusually simple milk system. LatteGo, personal profiles, iced recipes and easy access to the brew group make it practical for everyday use.
Good results still depend on the basics: fresh non-oily beans, gradual grinder adjustments and regular cleaning. Once properly configured, the machine can handle both daily espresso and convenient one-touch milk drinks with minimal effort.
